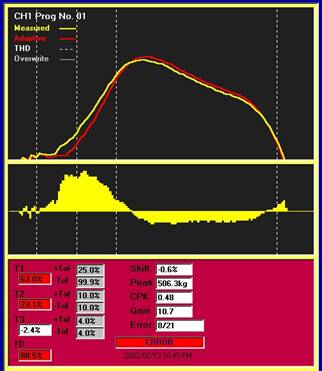

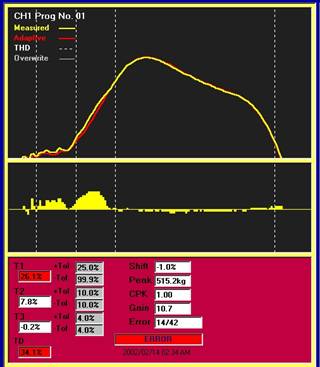

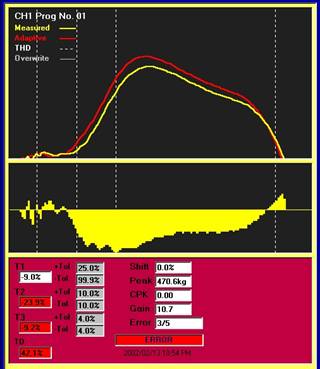

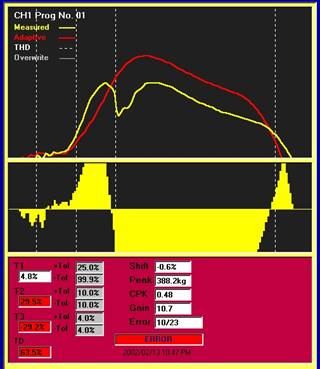

Text Box: In the following graphics the red curve is the learned reference. It is the force curve that the monitor expects to see every crimp. The yellow curve is from the last crimp. Ideally the yellow line would be identical to the red line.
Text Box: Strands out
Text Box: High insulation
Text Box: High insulation
Text Box: Low insertion
Text Box: Low insertion
Text Box: Strands pressed on top of the crimp
Text Box: Insulation wing bent down
Text Box: Insulation wing bent under wire
