| Crimp Contact Name : |
|
MATE-N-LOCK |
|
Operator : |
|
| Crimp Contact ID : |
|
61116-1 |
|
Wire Combination : |
|
20 AWG 19 strands |
| Tool Number : |
|
AWG No. |
|
Other |
|
| Manufacturer : |
|
Tyco |
|
Original Wire Number : |
19 |
|
|
|
|

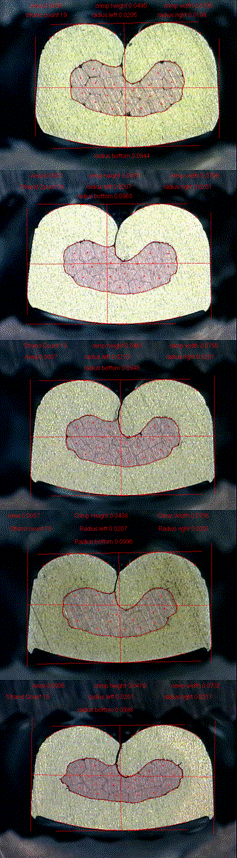

Target Crimp Height : |
|
0.0500 +/- 0.0020 |
|
|
Crimp Height : |
|
0.0495 |
|
|
Target Crimp Width : |
|
0.0740 +/- 0.0020 |
|
|
Crimp Width : |
|
0.0735 |
|
|
Conductor Cross Section : |
|
0.0008 |
|
|
Crimp Compression : |
|
3.50% |
|
|
|
Target Crimp Height : |
|
0.0480 +/- 0.0020 |
|
|
Crimp Height : |
|
0.0478 |
|
|
Target Crimp Width : |
|
0.0740 +/- 0.0020 |
|
|
Crimp Width : |
|
0.0736 |
|
|
Conductor Cross Section : |
|
0.0007 |
|
|
Crimp Compression : |
|
9.40% |
|
|
|
Target Crimp Height : |
|
0.0460 +/- 0.0020 |
|
|
Crimp Height : |
|
0.0461 |
|
|
Target Crimp Width : |
|
0.0740 +/- 0.0020 |
|
|
Crimp Width : |
|
0.0736 |
|
|
Conductor Cross Section : |
|
0.0007 |
|
|
Crimp Compression : |
|
14.49% |
|
|
|
Target Crimp Height : |
|
0.0440 +/- 0.0020 |
|
|
Crimp Height : |
|
0.0438 |
|
|
Target Crimp Width : |
|
0.0740 +/- 0.0020 |
|
|
Crimp Width : |
|
0.0736 |
|
|
Conductor Cross Section : |
|
0.0007 |
|
|
Crimp Compression : |
|
17.67% |
|
|
|
Target Crimp Height : |
|
0.0420 +/- 0.0020 |
|
|
Crimp Height : |
|
0.0419 |
|
|
Target Crimp Width : |
|
0.0740 +/- 0.0020 |
|
|
Crimp Width : |
|
0.0732 |
|
|
Conductor Cross Section : |
|
0.0006 |
|
|
Crimp Compression : |
|
23.85% |
|
|
|
|
|
|
|
|
|
|
